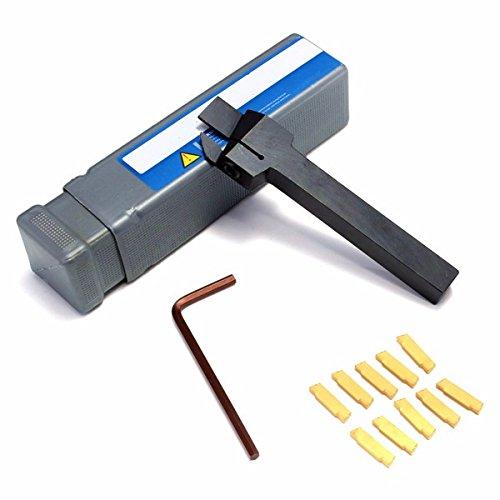

Kyocera KGDR 1616H3T20, Right-Hand, External Grooving Toolholder with a 20.00mm Max Depth of Cut for Grooving and Cut-Off Applications

• Improved insert clamping force generated by an innovative toolholder design
• Smooth chip control with numerous chipbreakers to choose from for a variety of workpieces
• Compatible with GDM3…, GDMS3…, GDG3…, GDGS3…, GDM4…, GDMS4…, GDG4…, GDGS4… Inserts

Product Details:

• Grooving Type: External
• Hand of Holder: Right-Hand
• Series: KGD (Integral)
• Toolholder Style: KGD
• [a] Rake Angle (Degree): Insert Reliant
• [CDX] Max Depth of Cut (Decimal Inch): 0.7874
• [CDX] Max Depth of Cut (mm): 20.00
• [CW] Insert Cutting Width (Decimal Inch): 0.1181-0.1575
• [CW] Insert Cutting Width (mm): 3.00-4.00
• [H] Shank Height (Decimal Inch): 0.6299
• [H] Shank Height (mm): 16.00
• [HF] Cutting Edge Height (Decimal Inch): 0.6299
• [HF] Cutting Edge Height (mm): 16.00
• [B] Shank Width (Decimal Inch): 0.6299
• [B] Shank Width (mm): 16.00
• [LF] Functional Length (Decimal Inch): 3.9370
• [LF] Functional Length (mm): 100.00
• [LH] Head Length (Decimal Inch): 1.3465
• [LH] Head Length (mm): 34.20
• [HBL] Head Bottom Offset Length (Decimal Inch): 1.3583
• [HBL] Head Bottom Offset Length (mm): 34.50
• [HBH] Head Bottom Offset Height (Decimal Inch): 0.1575
• [HBH] Head Bottom Offset Height (mm): 4.00
• [WF] Cutting Edge Distance (Decimal Inch): 0.5827
• [WF] Cutting Edge Distance (mm): 14.80
• Coolant Through: No
• Insert Holding Method: Screw
• Multi-Use Tool: Yes
• Application: Grooving and Cut-Off
• Toolholder Material: Steel
• Unit of Measure: Metric
• Compatible Insert Hand: Neutral
• Compatible Inserts (Partial): GDM3…, GDMS3…, GDG3…, GDGS3…, GDM4…, GDMS4…, GDG4…, GDGS4…

KGD/KGDF Grooving / Cut-Of BrochureAutomotive Tooling Solutions Brochure
